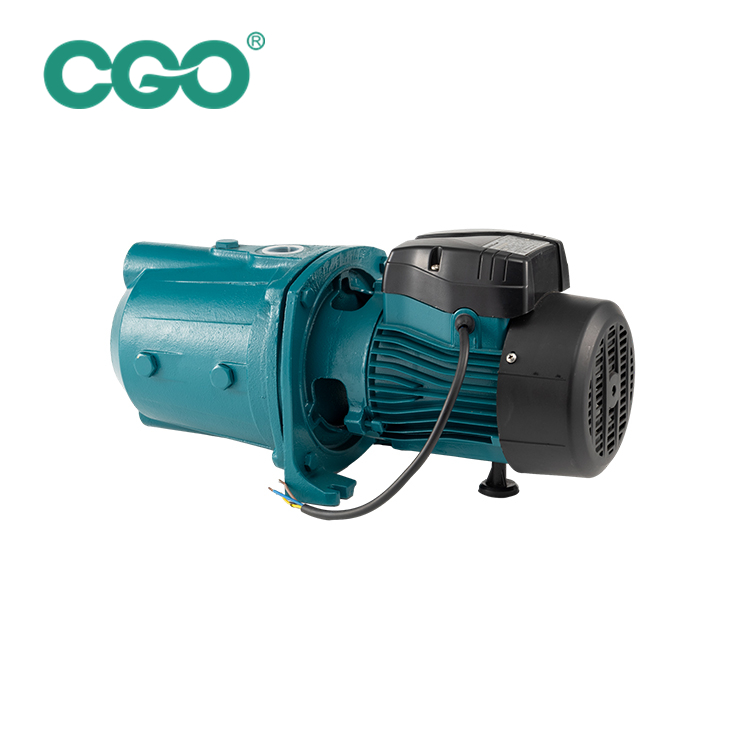

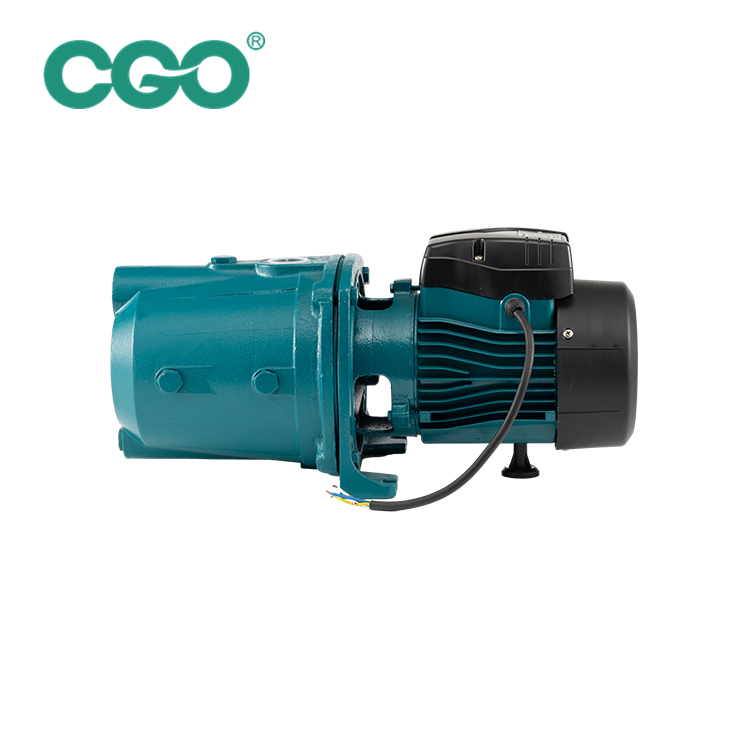

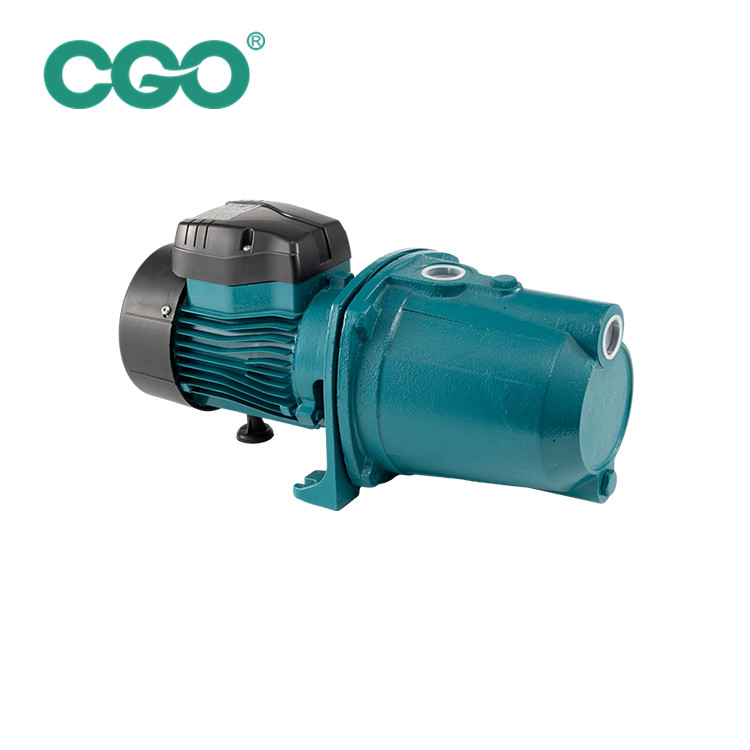

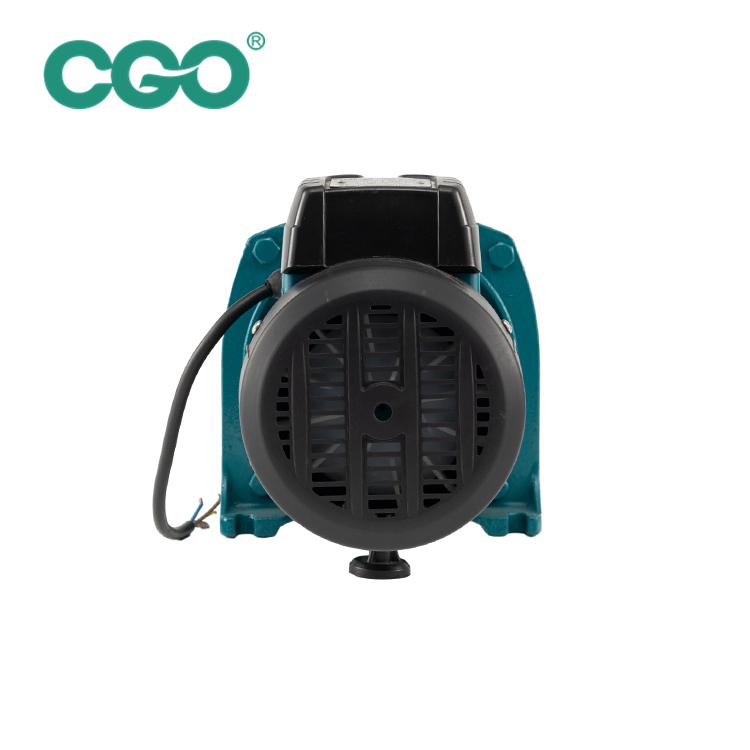

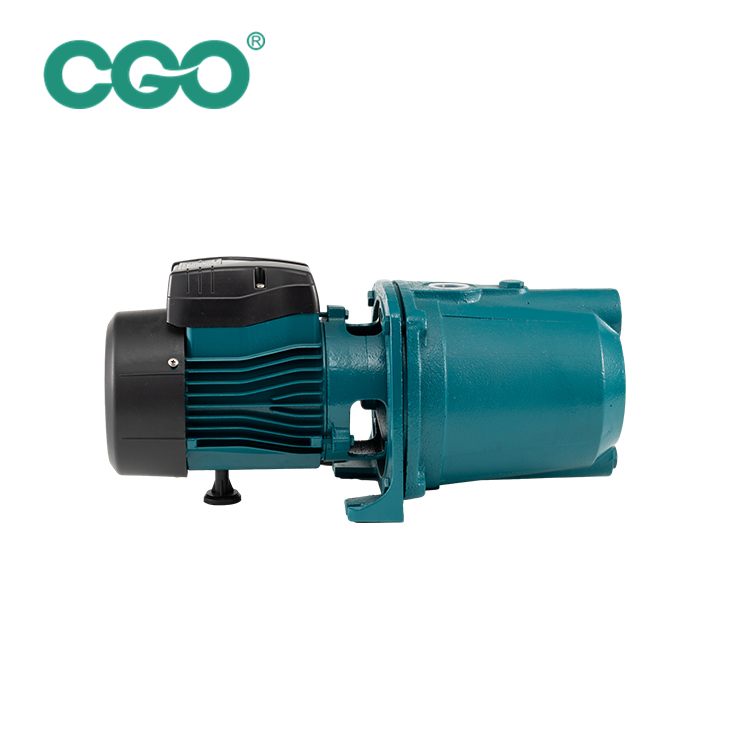

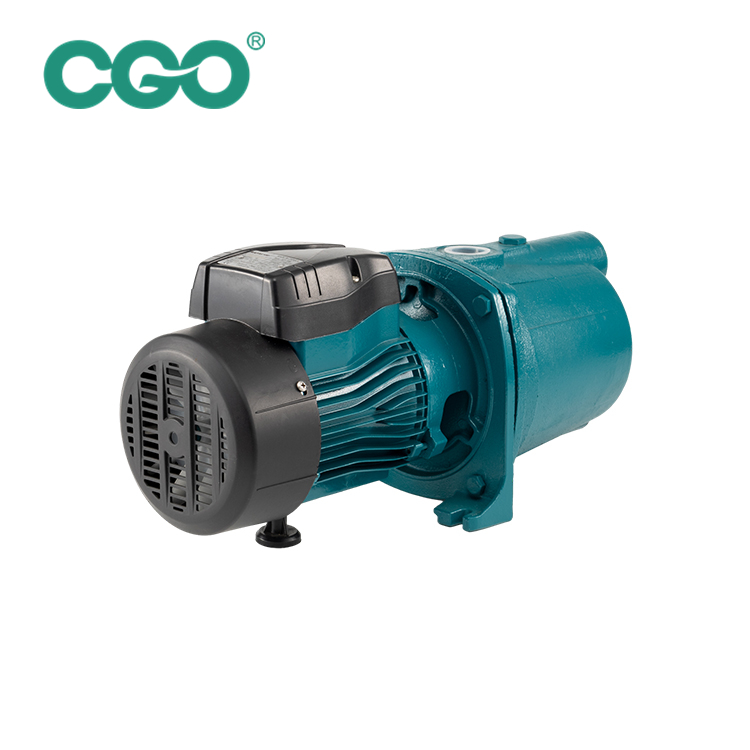

PRODUCT DESCRIPTION

Product introduction:

These three series self-priming JET pumps equipped with same Venturi system each. They are suitable to convey clean water and non-aggressive chemical fluids, even with liquid mixed with gas, from well incontinuous duty, they are also indicated to increase water pressure incentralized water systems, for small irrigation systems, for wateringgardens, for washing systems with wate


Component Construction:

Pump body: Cast lron

Pump support: Cast lron

Motor Housing: Aluminum Alloy

Impeller: Brass/PPO

Motor Shaft: Carbon Steel(304SS if request)

Mechanical seal: Ceramic/Graphite


Operating Condition:

Liquid Temperature up to 60℃

Ambient Temperature up to 40℃

Total Suction lift up to 9m


Motor:

Single Phase220V/50Hz,110V/60Hz if request

Insulation ClassB

Protection:lP44,1P54 if request

Cooling:External Ventilation

WithThermal Protector

Continuous Work S1

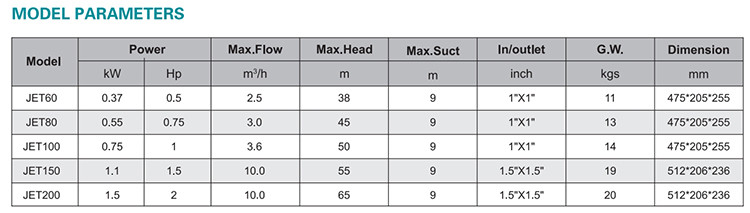

JET Table.jpg
