PRODUCT
‹
›
‹
›

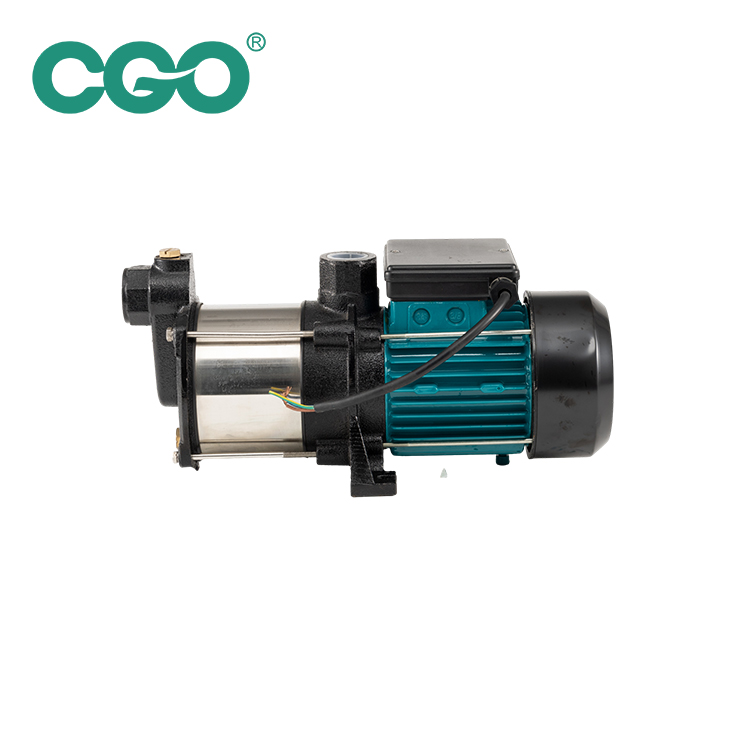

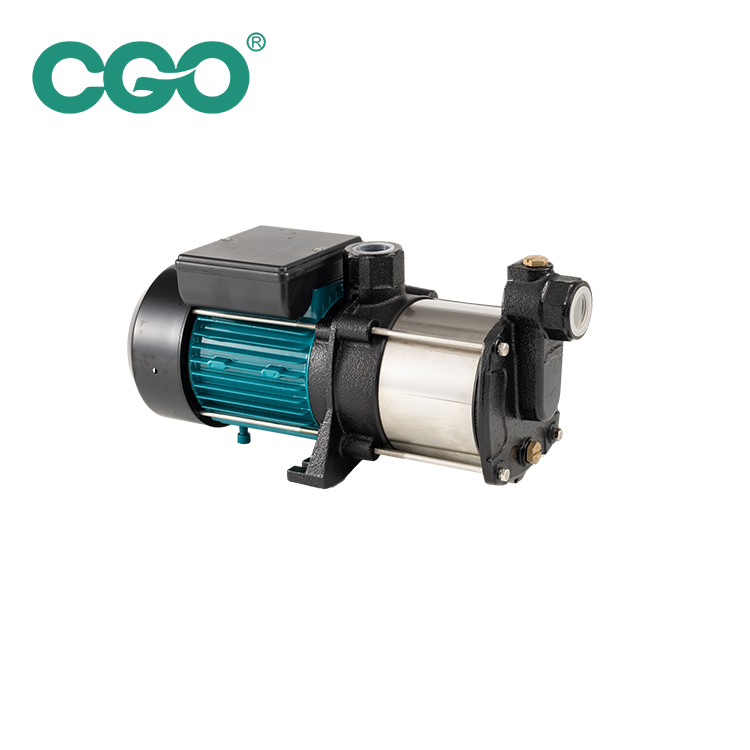

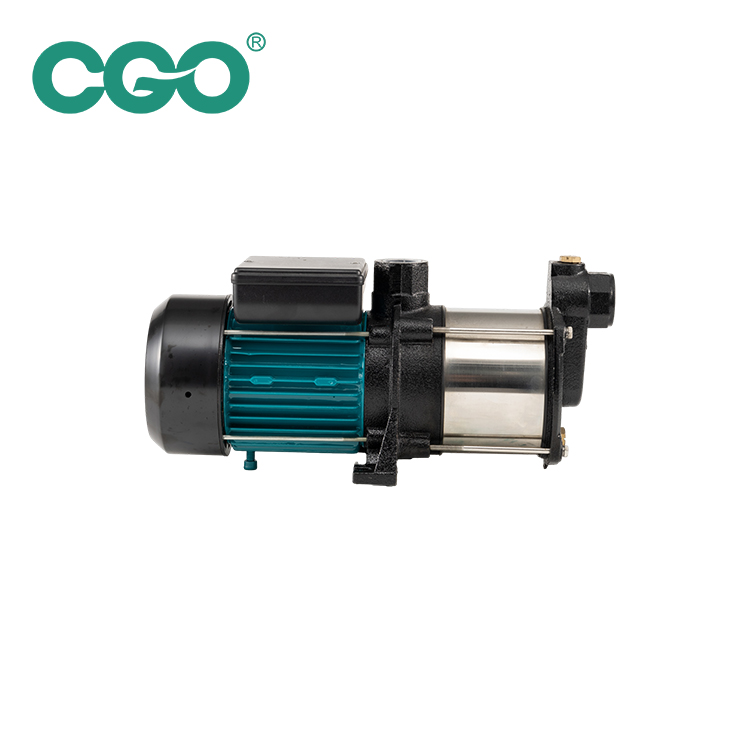

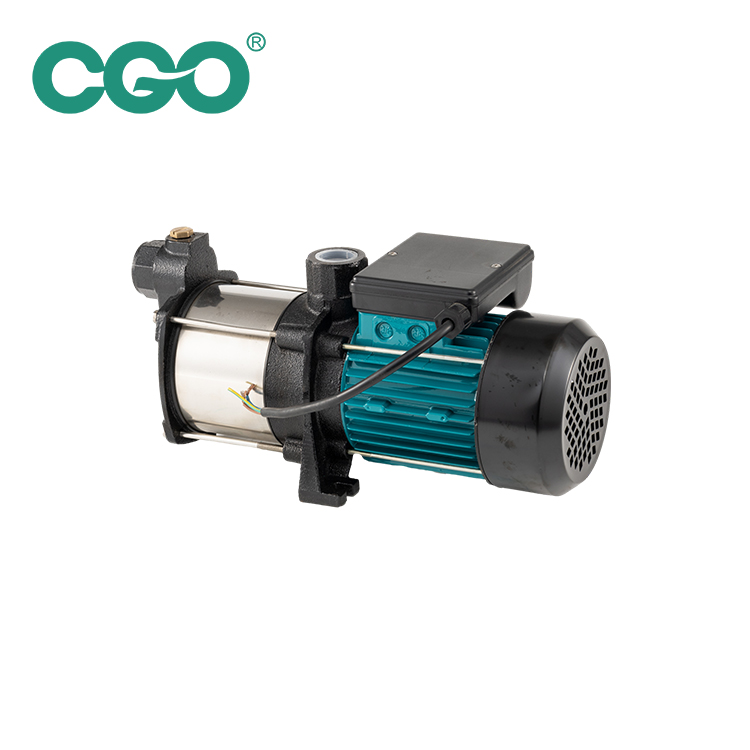

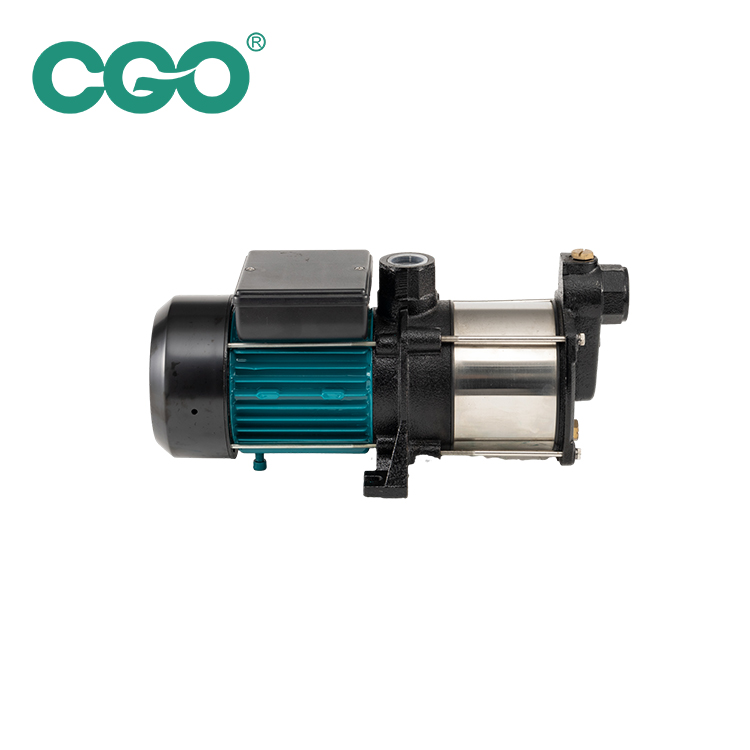

SMC Centrifugal Pump
PRODUCT DESCRIPTION
Component Construction:
Pump body: 304 stainless steel
Pump support: Cast lron
Motor Housing: Aluminum Alloy
Impeller: PPO
Motor Shaft: PPO
Mechanical seal: Ceramic/Graphite
Operating Condition:
Liquid Temperature up to 60 ℃
Ambient Temperature up to 40 ℃
Total Suction lift up to 9m
Motor:
Single Phase220V/50Hz,110V/60Hz if request Insulation ClassB
Protection: IP44, IP54 if request
Cooling: External Ventilation With Thermal Protector Continuous Work S1
